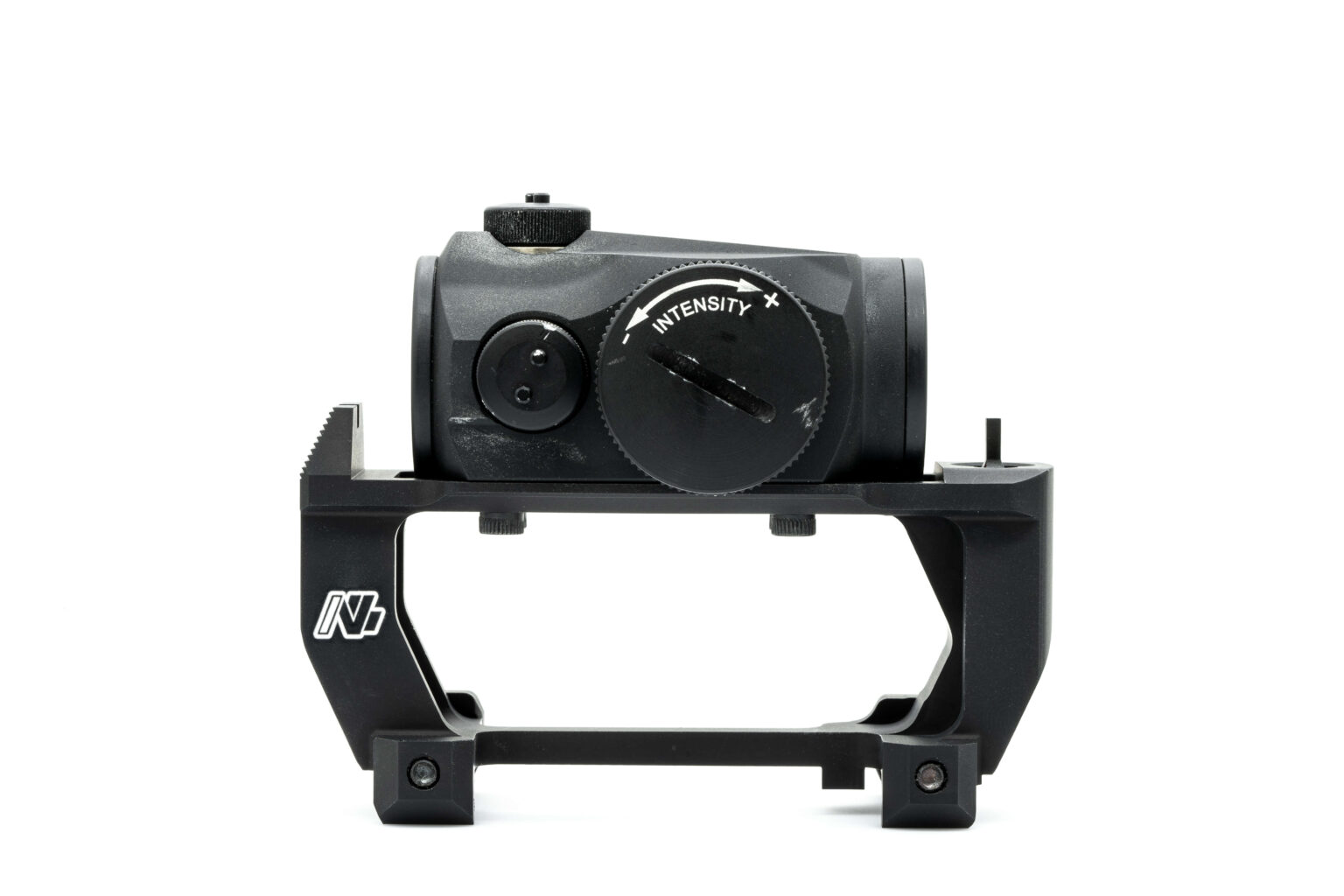

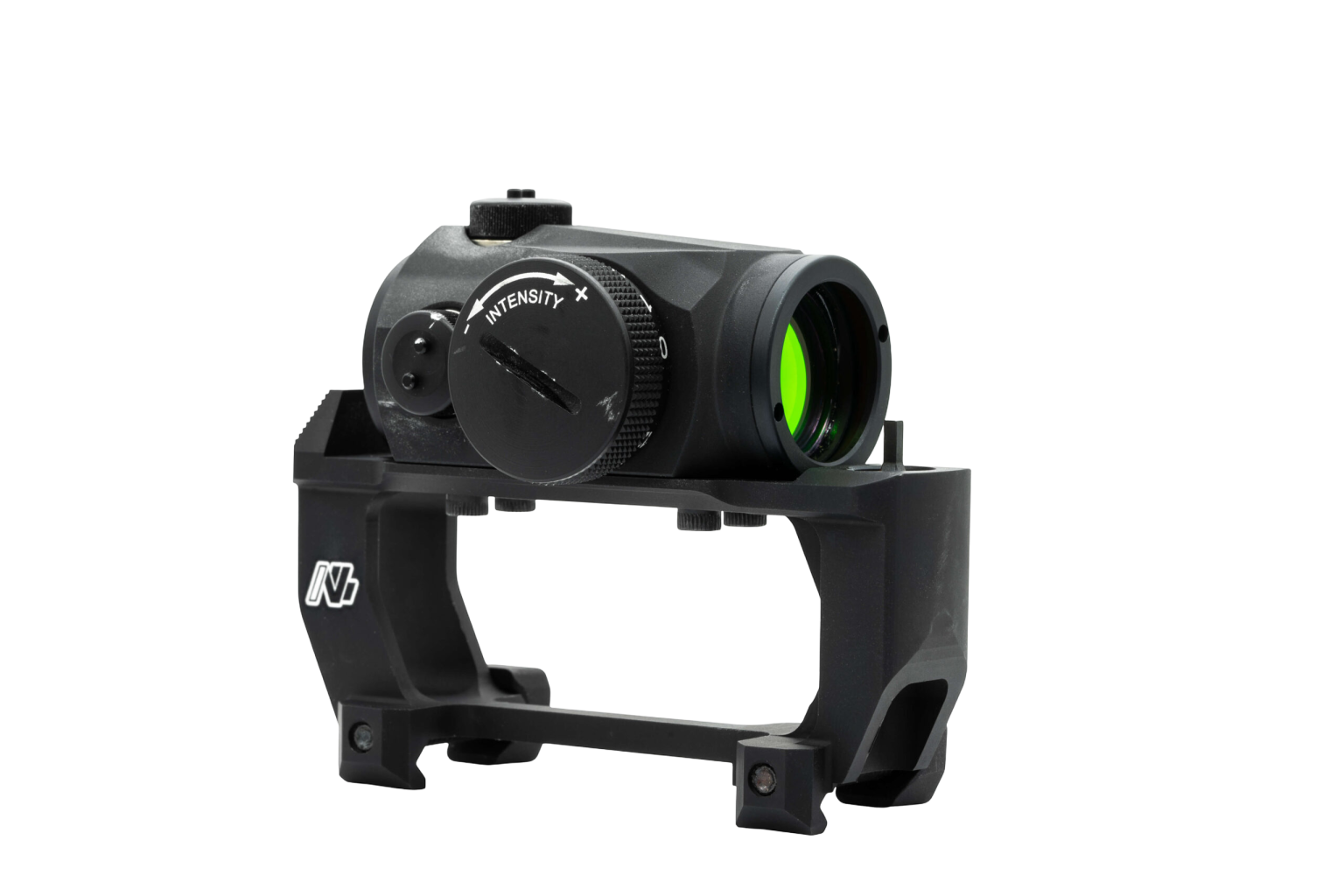

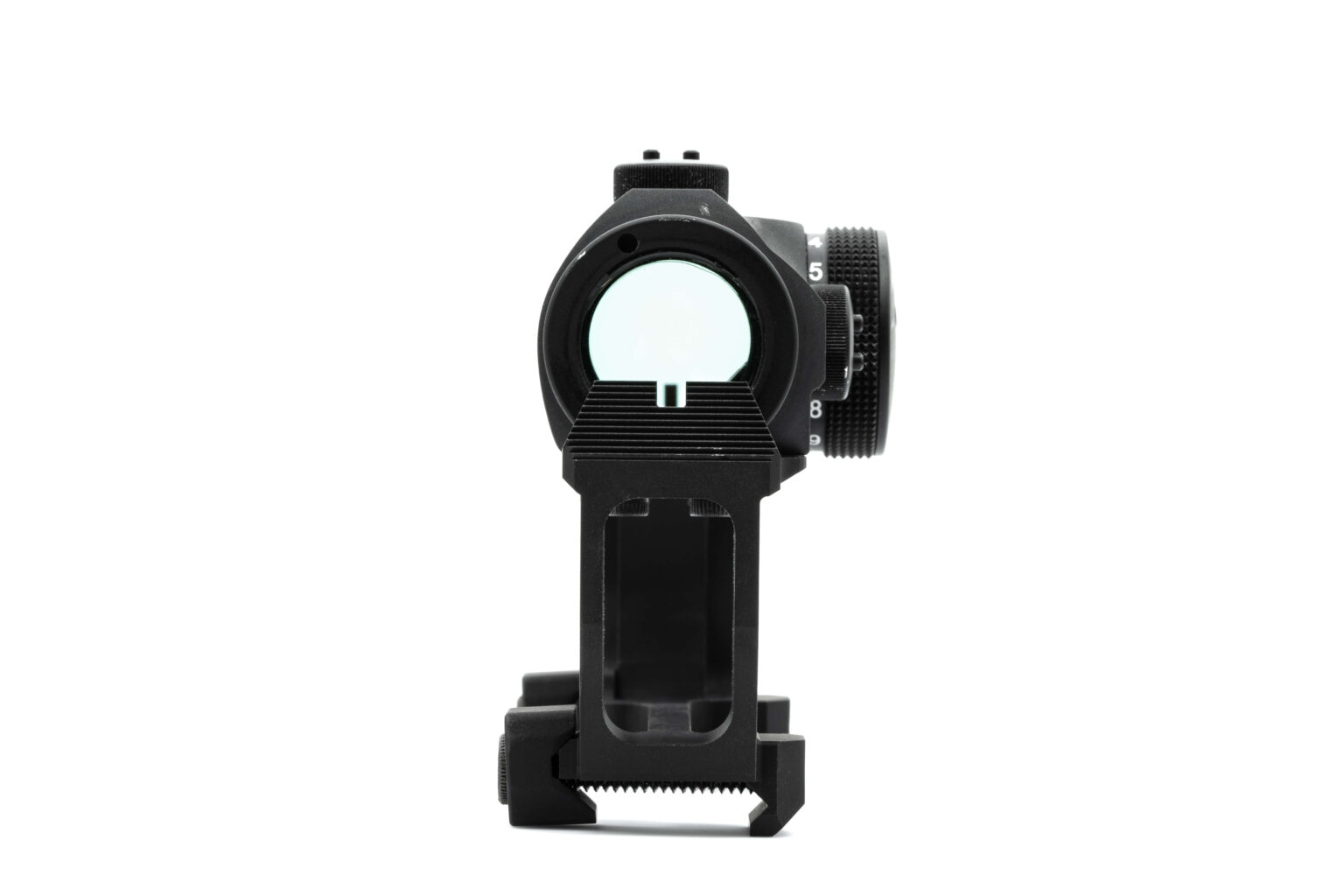

ANVL UKON T2 is a micro Aimpoint T2 type rifle mount that incorporates a single focal plane absolute co-witness backup iron sight package. DOES NOT FIT T1/H1. It utilizes a standard type AR-15 adjustable front sight post. It has the ability to adjust elevation. The user can adjust elevation to be point of aim, point of impact for subsonic rounds while still running the red dot for super sonic and vice versa. It can be used as an absolute co-witness as well for a backup if the red dot fails. Because it is a single focal plane, and it is so close together for a sight picture; the irons actually act like a backup red dot. The mount is constructed from 6061 aluminum with a type 3 hard coat.
DISCLAIMER: ANVL UKON mounts are an emergency backup iron sight system. These were designed as a military requirement to fulfill the backup iron sight requirement while keeping rail space open for the operator. The intended use is within fifty yards or much less, in a CQB capacity; if the end users Red Dot sight is damaged, battery has died, or never powered on. This optic Mount system relies on true mechanical zero between the optic Mount, Rail and Barrel to have accurate windage.
DISCLAIMER: Torque Spec is 35-37 in lb for the 10-24 Clamp Screws. Accessories should always be installed by a professional.

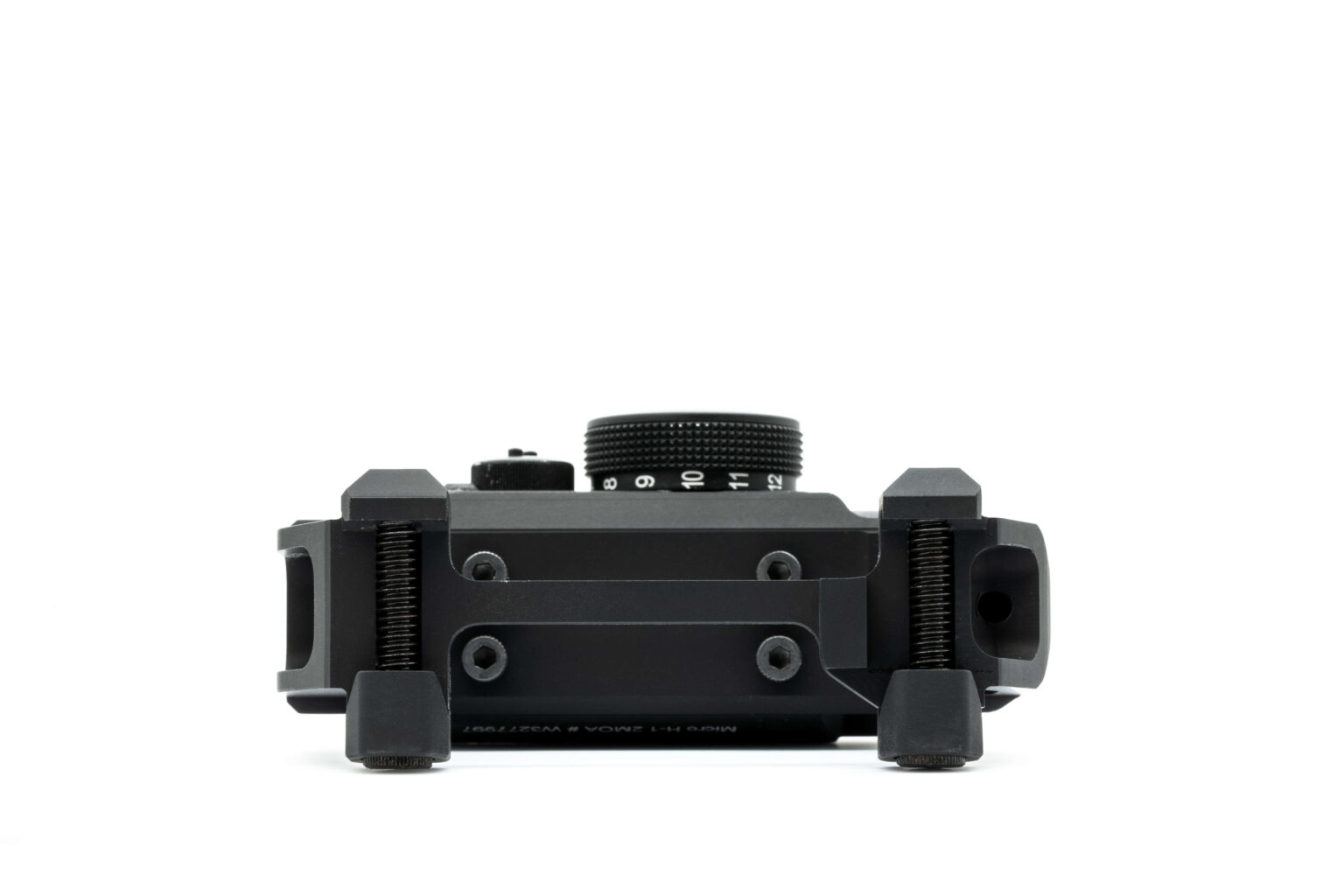

ANVL UKON mounts are built and constructed to be a perfect mechanical zero from mount to rail. Make sure that your optic is seated correctly, and tighten down on the truest mechanical zero you can get. When mounting the optic Mount, make sure the amount is completely seated and the picatinny rail is tight against the non screw head side of the rail before tightening.
The optic side recoil lug on the UKON measures to 0.240″. Designed it to be a press fit depending on the tolerance from Aimpoint. It could be more loose or more tight. Aimpoints are 0.2390-.240. If yours is 0.239″ and ours is 0.240″ that’s a 0.001 difference which is a true pressfit as the dimensional difference forward and aft should be 0.0005 & 0.0005. This is OK! Simply cross-bolt tighten the four M3x.05 screws that came with your Aimpoint. Cross-bolt tightening is a “X” pattern in your tightening. It is suggested to do one rotation per screw, until fully tightened to the Aimpoint torque specifications.
Reasons for windage to be off: Loose tolerances picatinny rail, out of spec tolerances picatinny rail, non-con Centric Barrel, mounting the optic mount to a polymer picatinny rail riveted to a sheet metal dust cover, poor tolerancing between barrel and picatinny rail.
Check out the video below!
Charlie A (verified owner) –
This is a phenomenal mount. Having the back up sights integrated on the same focal pane is best in class. You couldn’t have a better setup for your AR pistol where rail space is limited to begin with.
