ANVL UKON T2 1.93″

Original price was: $179.00.Current price is: $152.15.

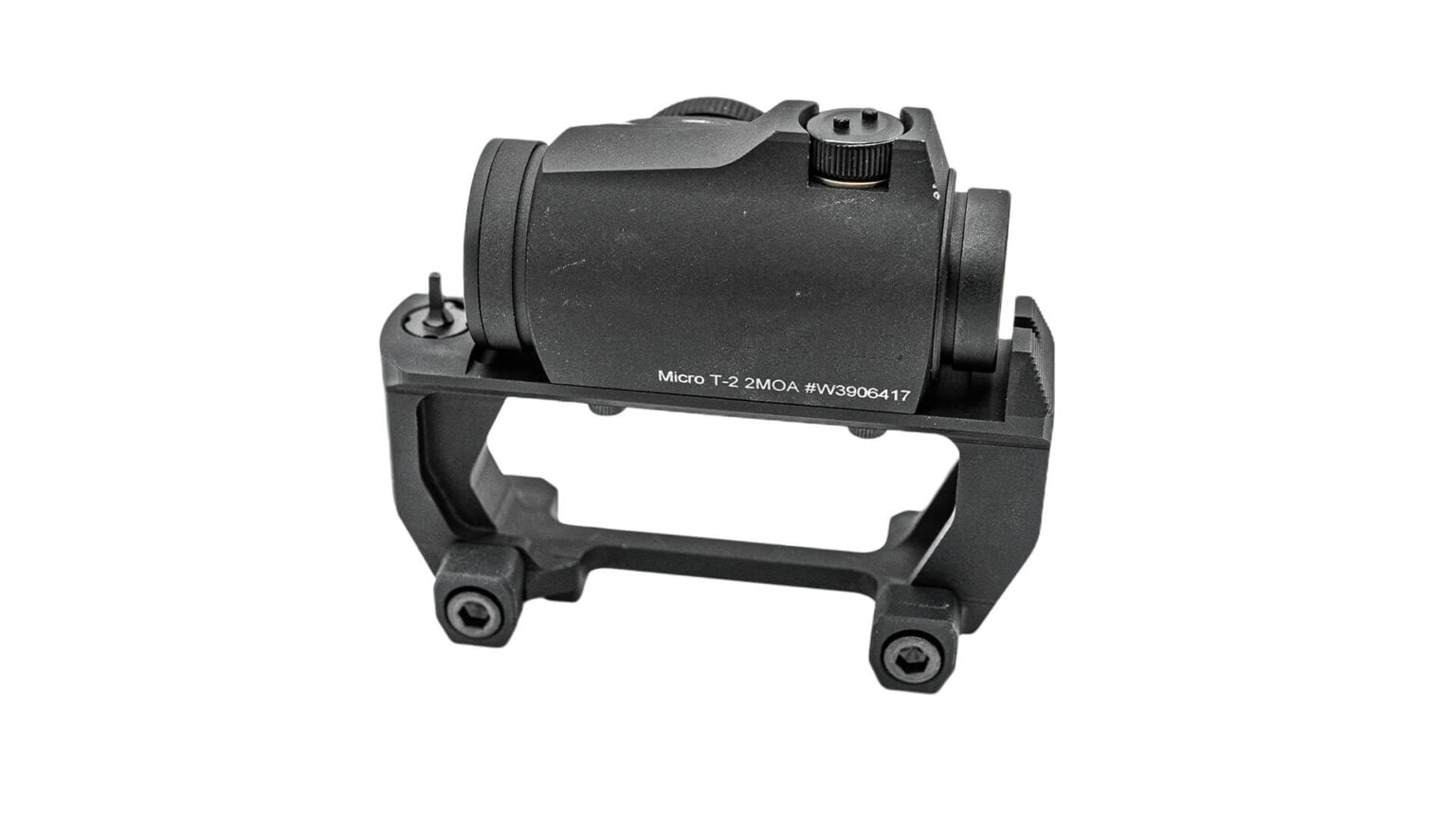

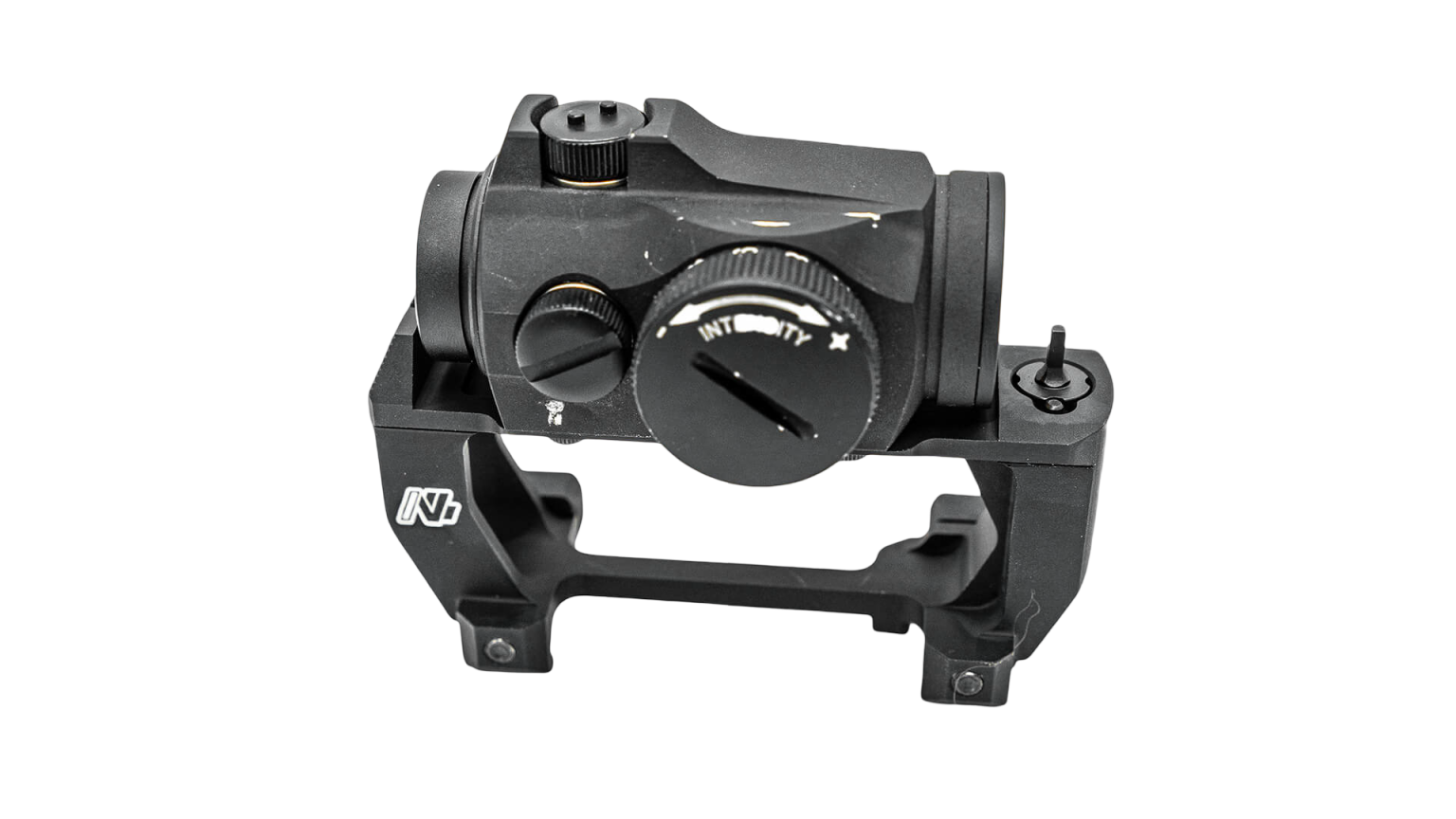

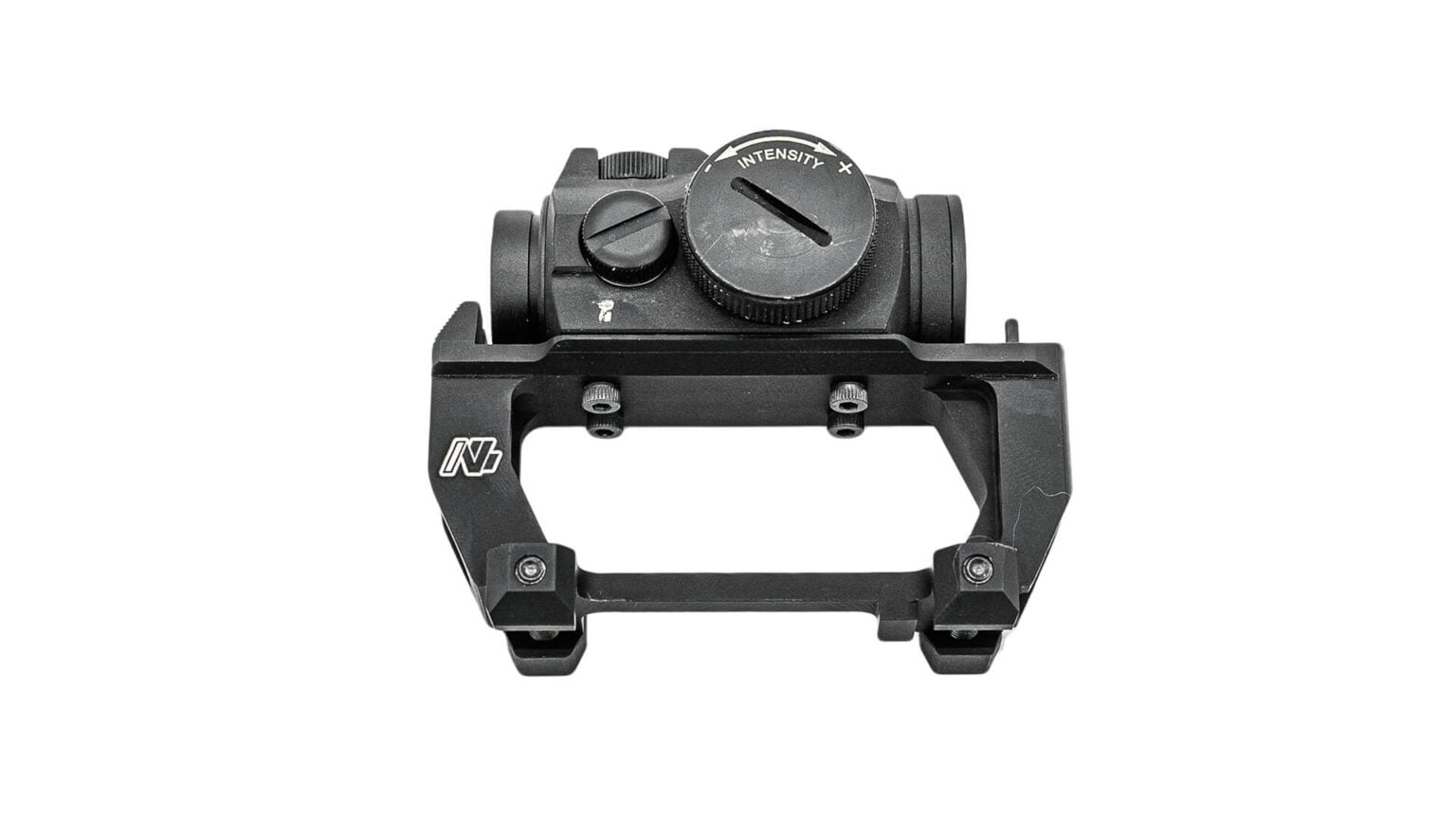

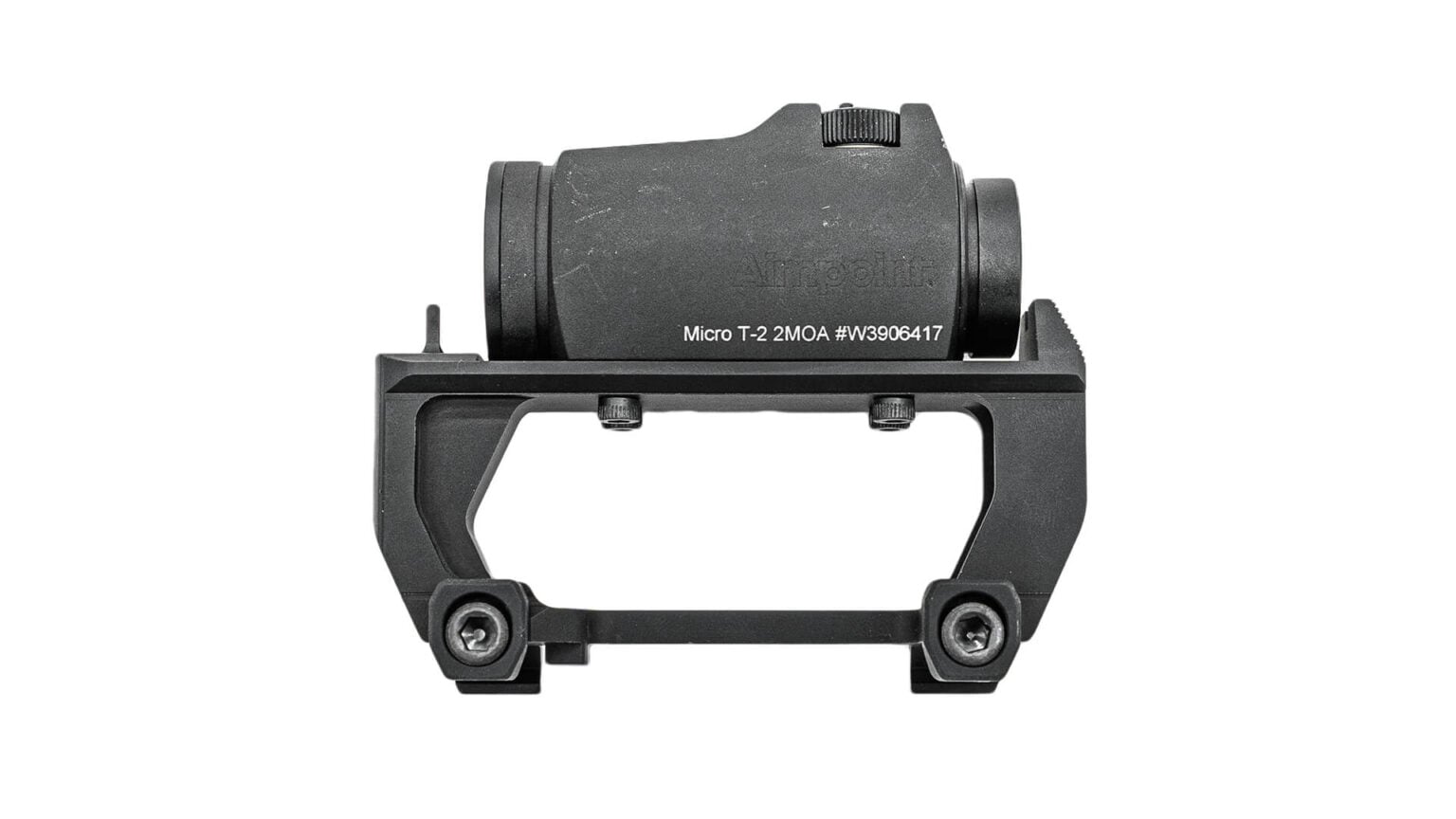

Micro Red Dot Mount with Integrated Backup Iron Sights for Aimpoint T2

Upgrade your Aimpoint T2 with the ANVL UKON T2 1.93, a revolutionary micro red dot mount that integrates a single focal plane absolute co-witness backup iron sight package. This innovative design ensures you’re always on target, even if your primary optic fails.

Features:

  • Integrated Backup Sights: Maintain accuracy with built-in backup iron sights for a seamless transition from your red dot.
  • Absolute Co-witness: Achieve perfect alignment between your red dot and iron sights for a consistent sight picture.
  • Adjustable: Fine-tune your iron sights for various ammunition types and distances, including subsonic and supersonic rounds.

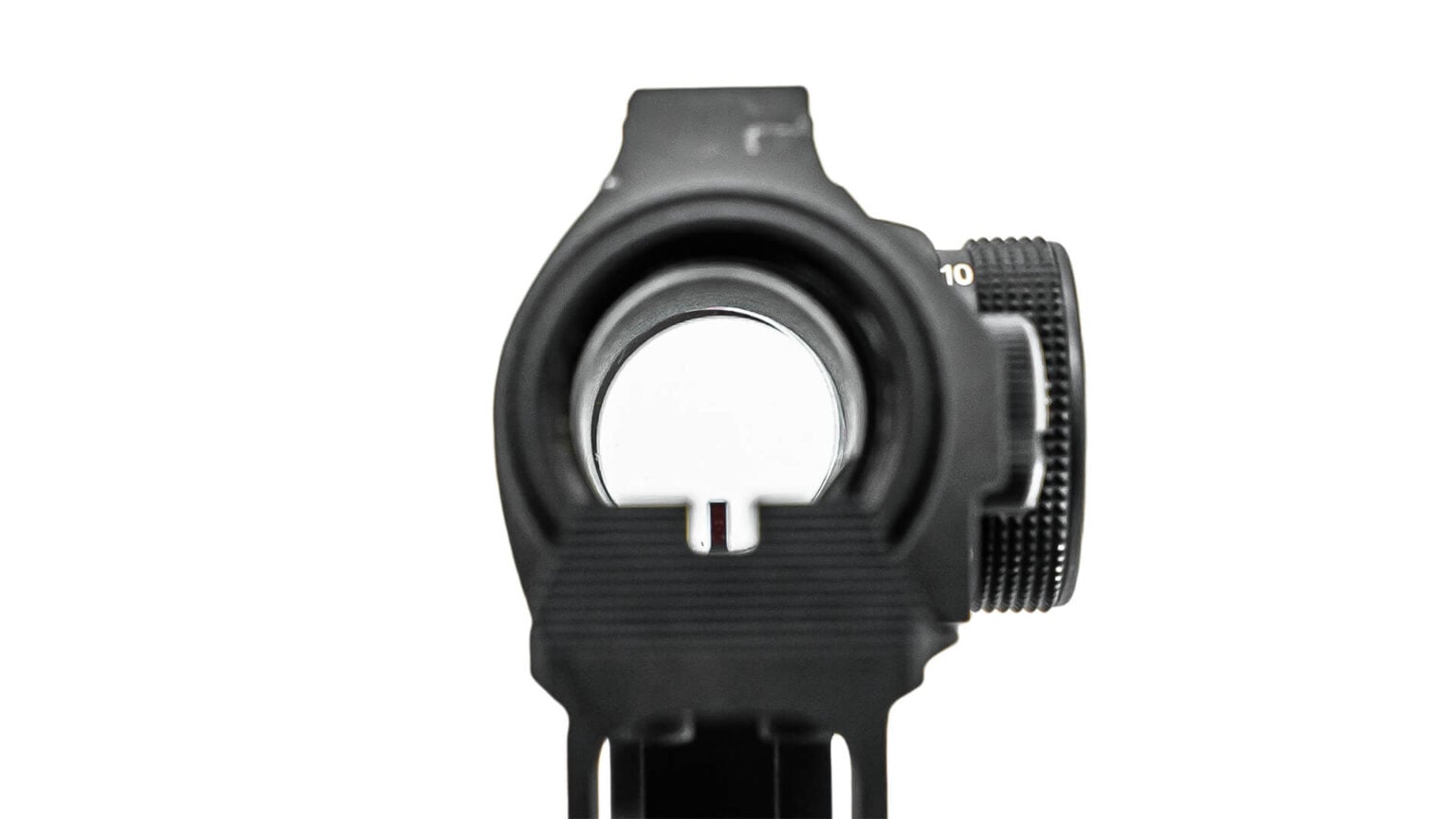

  • AR-15 Front Sight Post: Utilize a familiar and adjustable front sight post for precise aiming.
  • Compact and Lightweight: Minimize bulk and maximize rail space with this low-profile design.
  • Durable Construction: Crafted from 6061 aluminum with a type 3 hard coat for lasting performance.
  • Lightweight: Weighs only 2.2oz.
Height: 1.953in
Width: 1.32in
Length: 3.54in
ANVL – UKON – T2 – 1.93
NSN:1240-01-710-8707
(1 customer review)

In stock

Earn up to 152 Points.


*Sezzle payment option available at checkout for orders over $150!

30-Day Manufacturing Warranty
DISCLAIMER: ANVL UKON mounts are an emergency backup iron sight system. These were designed as a military requirement to fulfill the backup iron sight requirement while keeping rail space open for the operator. The intended use is within fifty yards or much less, in a CQB capacity; if the end users Red Dot sight is damaged, battery has died, or never powered on. This optic Mount system relies on true mechanical zero between the optic Mount, Rail and Barrel to have accurate windage.

DISCLAIMER: Torque Spec is 35-37 in lb for the 10-24 Clamp Screws. Accessories should always be installed by a professional.

ANVL UKON mounts are built and constructed to be a perfect mechanical zero from mount to rail. Make sure that your optic is seated correctly, and tighten down on the truest mechanical zero you can get. When mounting the optic Mount, make sure the amount is completely seated and the picatinny rail is tight against the non screw head side of the rail before tightening.

The optic side recoil lug on the UKON measures to 0.240″. Designed it to be a press fit depending on the tolerance from Aimpoint. It could be more loose or more tight. Aimpoints are 0.2390-.240. If yours is 0.239″ and ours is 0.240″ that’s a 0.001 difference which is a true pressfit as the dimensional difference forward and aft should be 0.0005 & 0.0005. This is OK! Simply cross-bolt tighten the four M3x.05 screws that came with your Aimpoint. Cross-bolt tightening is a “X” pattern in your tightening. It is suggested to do one rotation per screw, until fully tightened to the Aimpoint torque specifications.

Reasons for windage to be off: Loose tolerances picatinny rail, out of spec tolerances picatinny rail, non-concentric Barrel, mounting the optic mount to a polymer picatinny rail riveted to a sheet metal dust cover, poor tolerancing between barrel and picatinny rail.
Disclaimer: All ANVL products should be installed by a professional gunsmith. ANR DESIGN IS not responsible for poor Gunsmithing installation techniques and damage to personal property.

1 review for ANVL UKON T2 1.93″

  1. Joel (verified owner)

    It is a nice lightweight mount but you cannot adjust windage of the iron sights Mine shoots six inches left at 25yds. I have it mounted to a BCM upper

    • Alex Costa

      the BCM rail could be a hair out of spec. Make sure the feet are COMPLETELY flux before torqueing.
