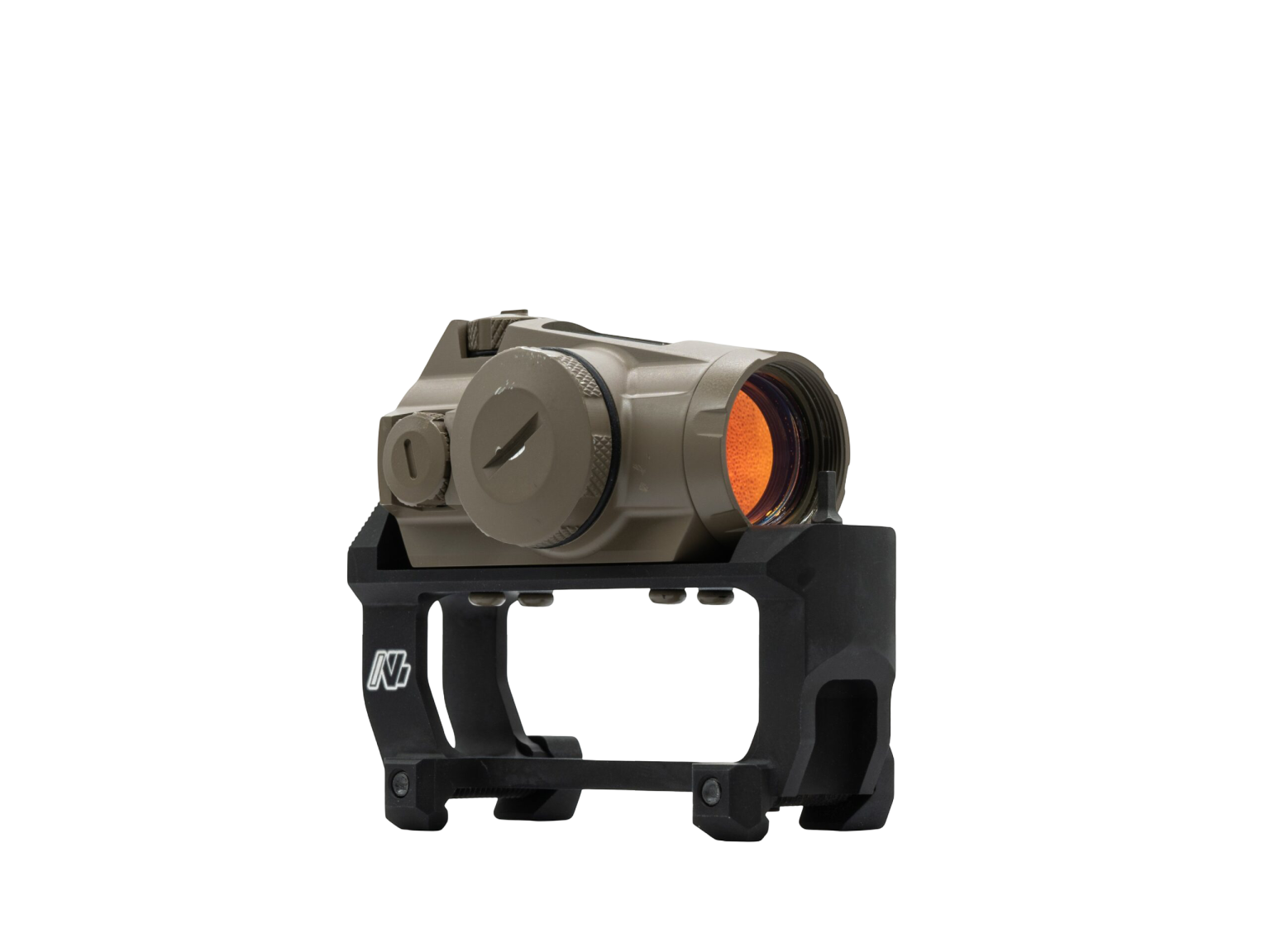

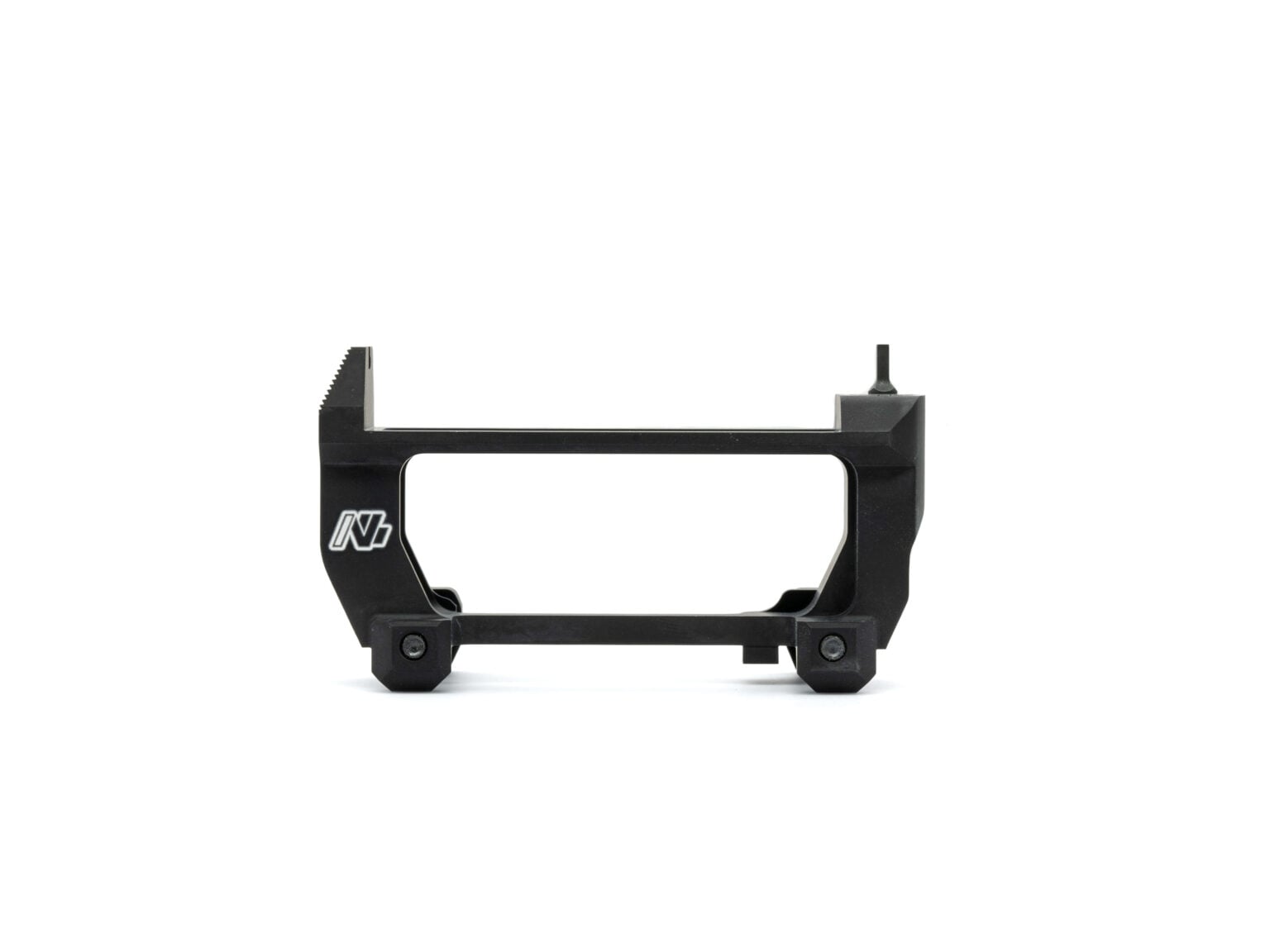

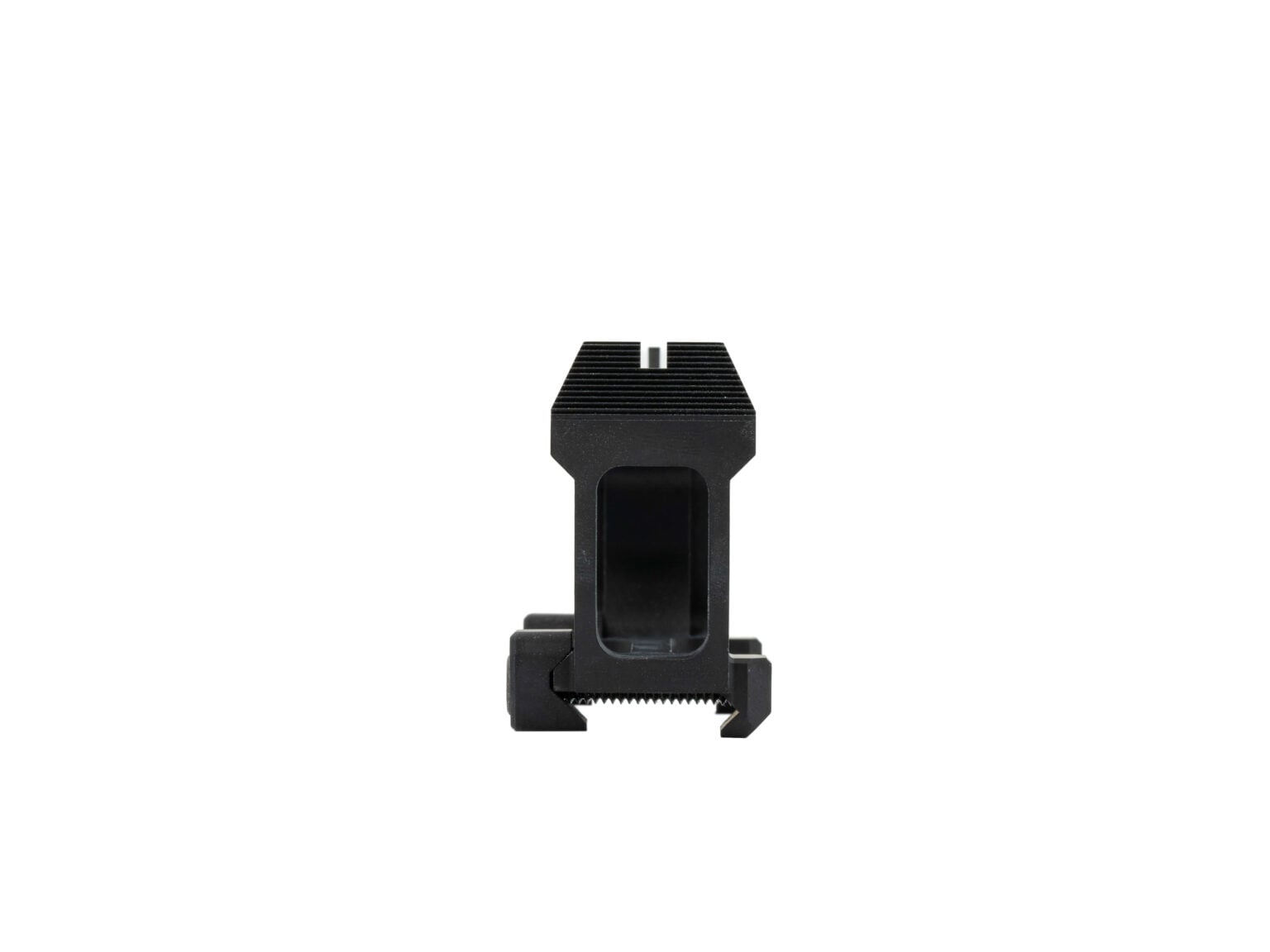

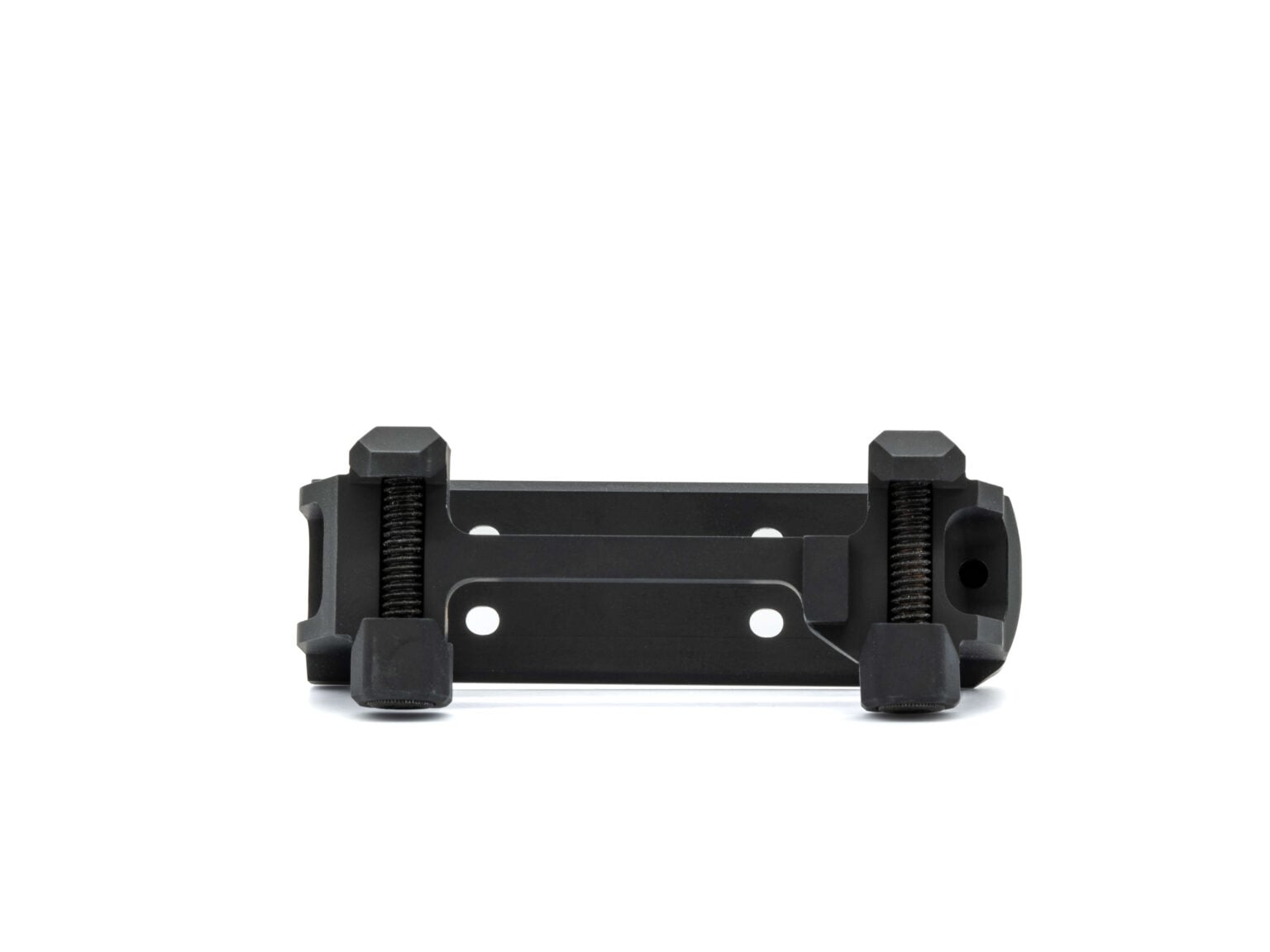

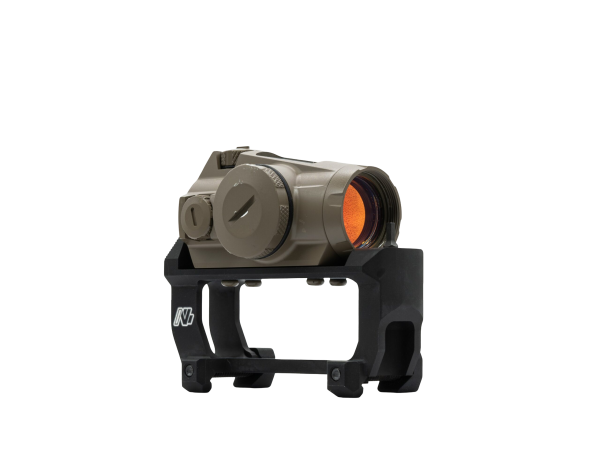

ANVL UKON R4T 1.93 is a micro Sig Sauer Romeo 4T type rifle mount that incorporates a single focal plane absolute co-witness backup iron sight package. The ANVL UKON R4T 1.93″ also fits the Sig Sauer Romeo 4XT-PRO. It utilizes a standard type AR-15 adjustable front sight post. It has the ability to adjust elevation. The user can adjust elevation to be point of aim, point of impact for subsonic rounds while still running the red dot for super sonic and vice versa. It can be used as an absolute co-witness as well for a backup if the red dot fails. Because it is a single focal plane, and it is so close together for a sight picture; the irons actually act like a backup red dot. The mount is constructed from 6061 aluminum with a type 3 hard coat.
Weight: 2.1oz
Height: 1.92in
Width: 1.32in
Length: 3.47in
DISCLAIMER: ANVL UKON mounts are an emergency backup iron sight system. These were designed as a military requirement to fulfill the backup iron sight requirement while keeping rail space open for the operator. The intended use is within fifty yards or much less, in a CQB capacity; if the end user’s Red Dot sight is damaged, battery has died, or never powered on. This optic Mount system relies on true mechanical zero between the optic Mount, Rail and Barrel to have accurate windage.
DISCLAIMER: Torque Spec is 35-37 in lb for the 10-24 Clamp Screws. Accessories should always be installed by a professional.
ANVL UKON mounts are built and constructed to be a perfect mechanical zero from mount to rail. Make sure that your optic is seated correctly, and tighten down on the truest mechanical zero you can get. When mounting the optic Mount, make sure the amount is completely seated and the picatinny rail is tight against the non screw head side of the rail before tightening.
Reasons for windage to be off: Loose tolerances picatinny rail, out of spec tolerances picatinny rail, non-con Centric Barrel, mounting the optic mount to a polymer picatinny rail riveted to a sheet metal dust cover, poor tolerancing between barrel and picatinny rail.
Disclaimer: All ANVL products should be installed by a professional gunsmith. ANR DESIGN IS not responsible for poor Gunsmithing installation techniques and damage to personal property.
Chris (verified owner) –
Great product if your going 1’93 height with some back ups you can use for reference as opposed to having nothing. Only complaints I have is you can’t adjust windage or use the accessories that your optic comes with, ie. Killflash, front and back lens covers. Im not going to knock it for not being able to use rear lens covers But for someone who might need a Killflash in the front I think it’s important to note before buying. Gotta figure out what your use is for this. For a CQB/ range gun 100 yards and in, it’s a great option. Haven’t got to shoot a ton to verify shift but it mounts pretty solid with minimal back and forth movement so I wouldn’t imaging it would shift on you if your torquing the mount properly on to receiver. Other then that I have no complaints and mount looks pretty cool also.
