ANVL SHARUR FN 510 is our premier compensator for the FN 510 10mm pistol with threaded barrel. The ANVL SHARUR Compensator is a 3-piece assembly that comes with a castle nut torquing wrench. The ANVL SHARUR FN 510 Compensator achieves optimal compensation with heavy, high-pressure 10mm ammunition. It is recommended to run Underwood Ammunition or Buffalo Bore Ammunition that exceeds 600 ft-lbs of muzzle energy.
Sharur, which means “smasher of thousands” is the weapon and symbol of the god Ninurta. Sumerian mythic sources describe it as an enchanted talking mace. It has been suggested as a possible precursor for similar objects in other mythology such as Arthurian lore. We name our products after mythological clubs, maces, hammers, and blunt weapons!
The ANVL SHARUR FN 510 Compensator can be used on the FN 545, but the .45 ACP does not output enough energy to take advantage of the port size of this compensator. It has very little effect on escaping gasses, but the added weight on the muzzle does help with muzzle flip.
Specifications:
- 0.578×28 thread pitch on the compensator
- 4140 Pre-Hard Steel
- Finish: Nitride
- Weight of the Assembly: 3.5 oz.
- Length: 1.49
- Width: 1.2
- Height: 1.35

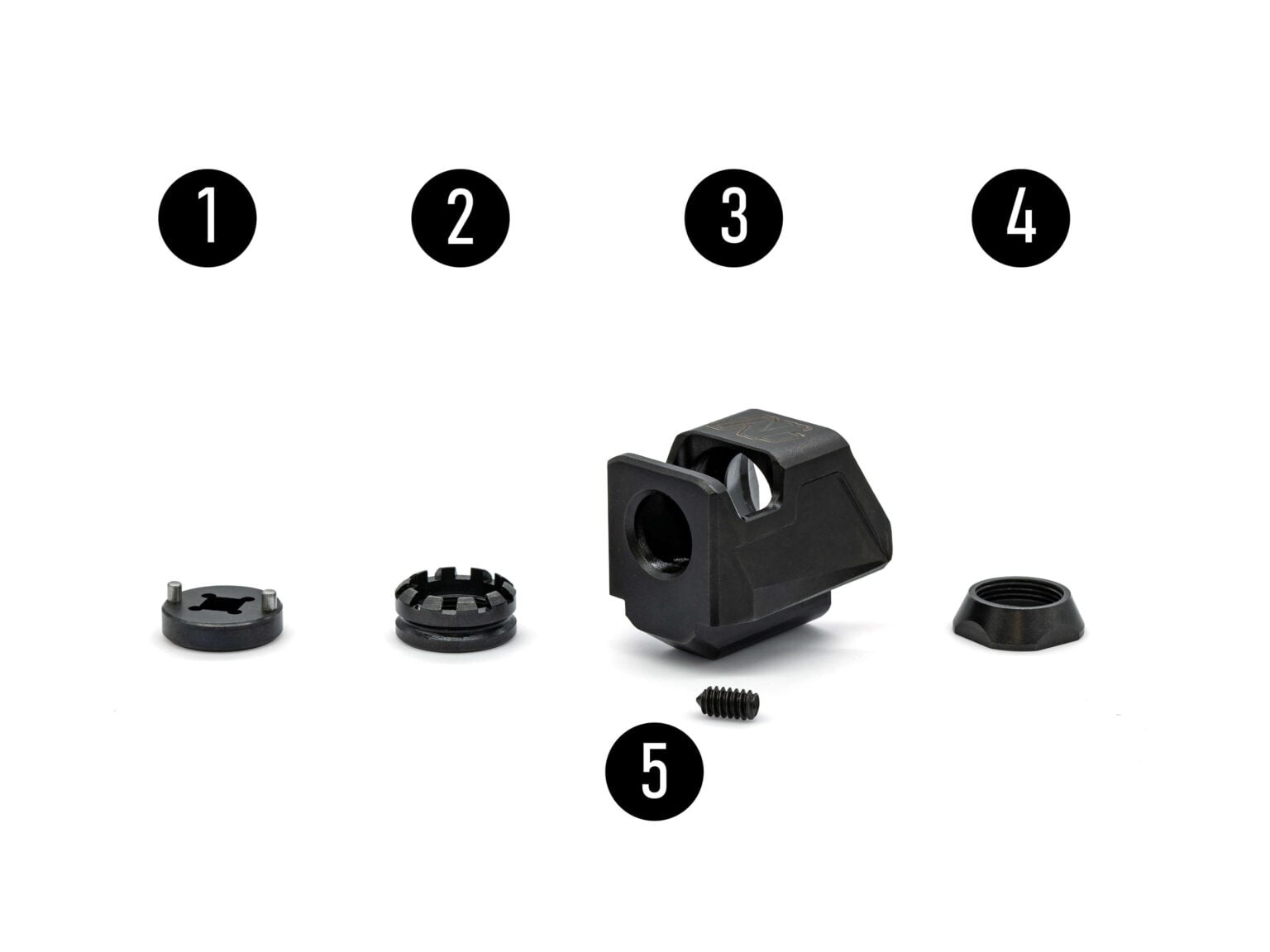

ANVL SHARUR FN510 Compensator Parts List:
1. 1/4″ Drive Castle Nut Wrench Head
2. Compensator Castle Nut
3. Compensator
4. Tapered Barrel Nut
5. Tapered Set Screw – 3/32 HEX
GUNSMITHING DISCLAIMER:
The FN 510 dust cover tolerances can vary. The ANVL SHARUR Compensator may have an interference with the FN 510 dust cover. It is a VERY small interference because we chose to capture the protruding guide rod in the compensator assembly. The guide rod pocket is roughly 0.040 bigger than the slide’s recoil/guide rod flange.
Our host model had barely touched the dust cover and naturally removed a tiny amount of polymer with no issues. Some customers may have to remove slightly more polymer for the best fit. The ANVL SHARUR only tucks into the frame by 0.130 inches with a potential 0.040 inch interference. Mild sanding of the inside of the radius of the dust cover can relieve the interference (see photo below). We have spoken to FN America and they have assured us this gunsmithing modification will NOT void any warranties on the gun.
Installation Instructions:
Loctite Red, Vibra-tite, and Rocksett not included.

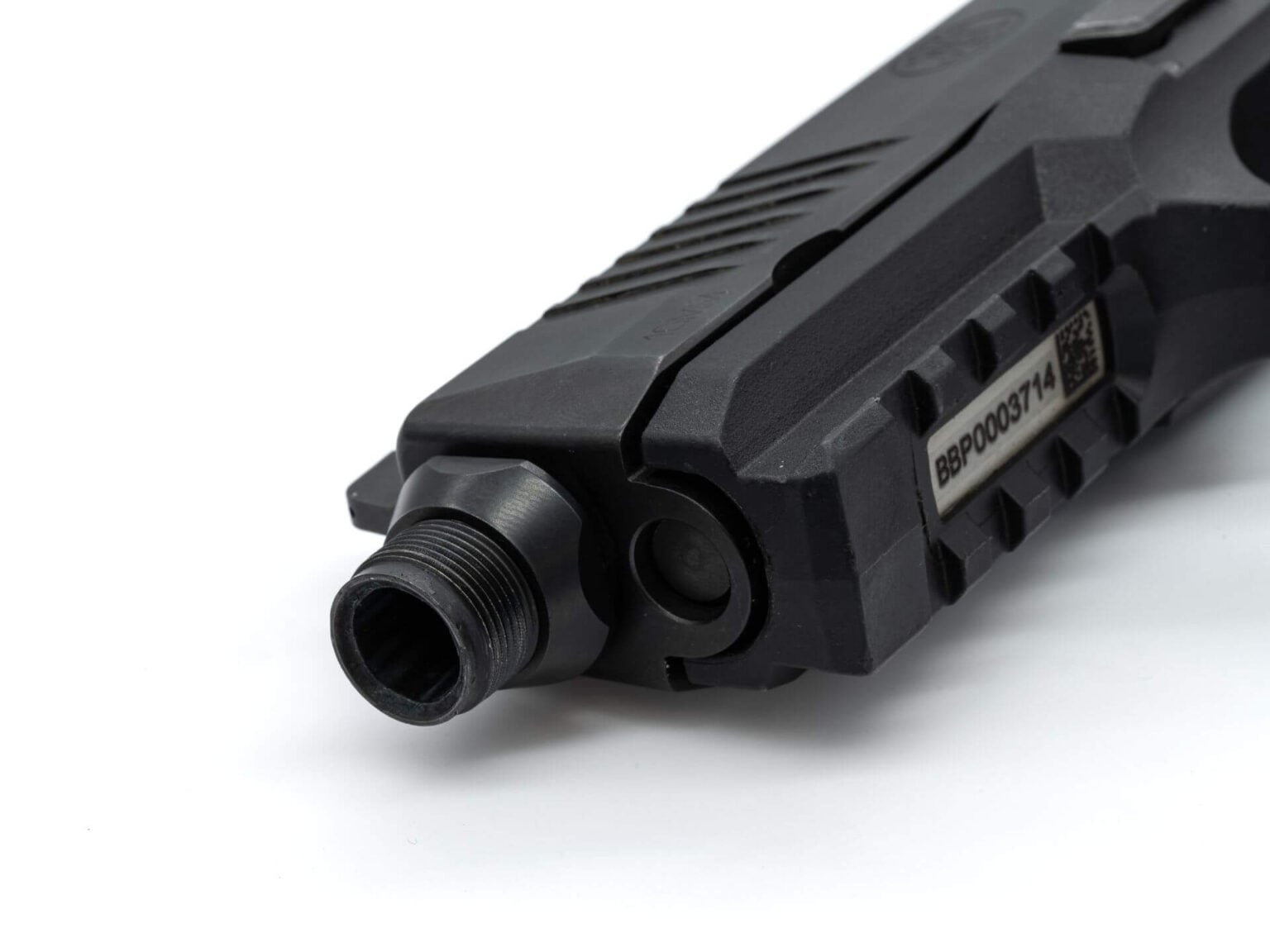

Step 1. Apply one dot of Red Vibra-tite or Rocksett to the last 3 threads of the barrel closest to the 90 degree shoulder of the barrel. Thread on the tapered barrel nut, and torque till the nut is unmoving against the 90 degree shoulder.

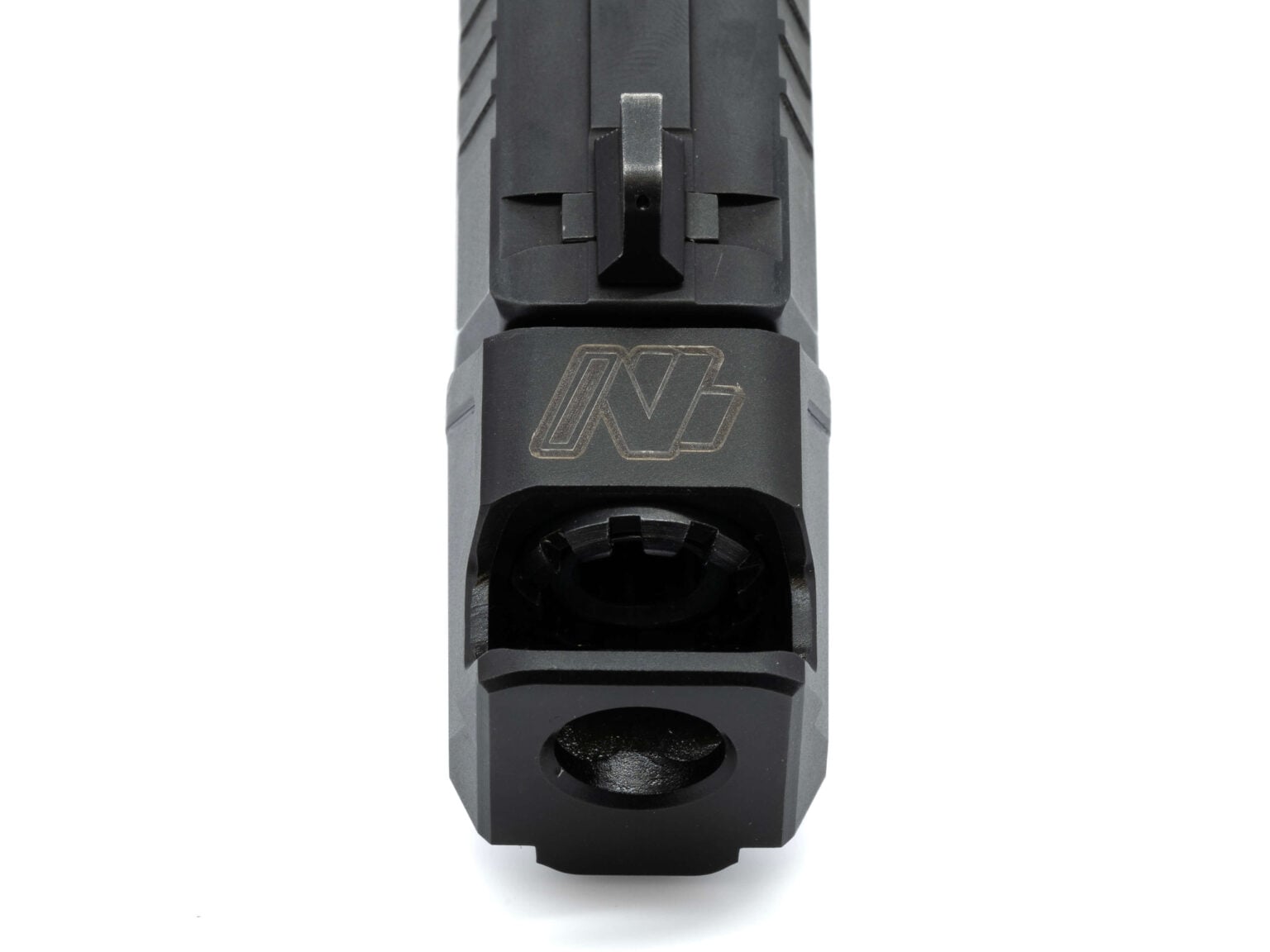

Step 2: Loosely position the ANVL SHARUR Compensator body over the threaded barrel and seat it on the tapered barrel nut.
Step 3: Press the Compensator tightly against the Tapered Barrel Nut and apply one dot of Red Vibra-tite or Rocksett to the exposed threads inside the port of the compensator, inside the overhang where the Castle Nut will be torqued to. Please note that the Castle Nut has a circumferential groove. This groove is where the tapered set screw will be aligned.
Step 4: Drop the Castle Nut (teeth facing the muzzle) into the ANVL SHARUR port and gently finger the Castle Nut on. Once loosley snug, place a flat, hard object on top of the compensator and slide to maintain alignment when torquing the Castle Nut.

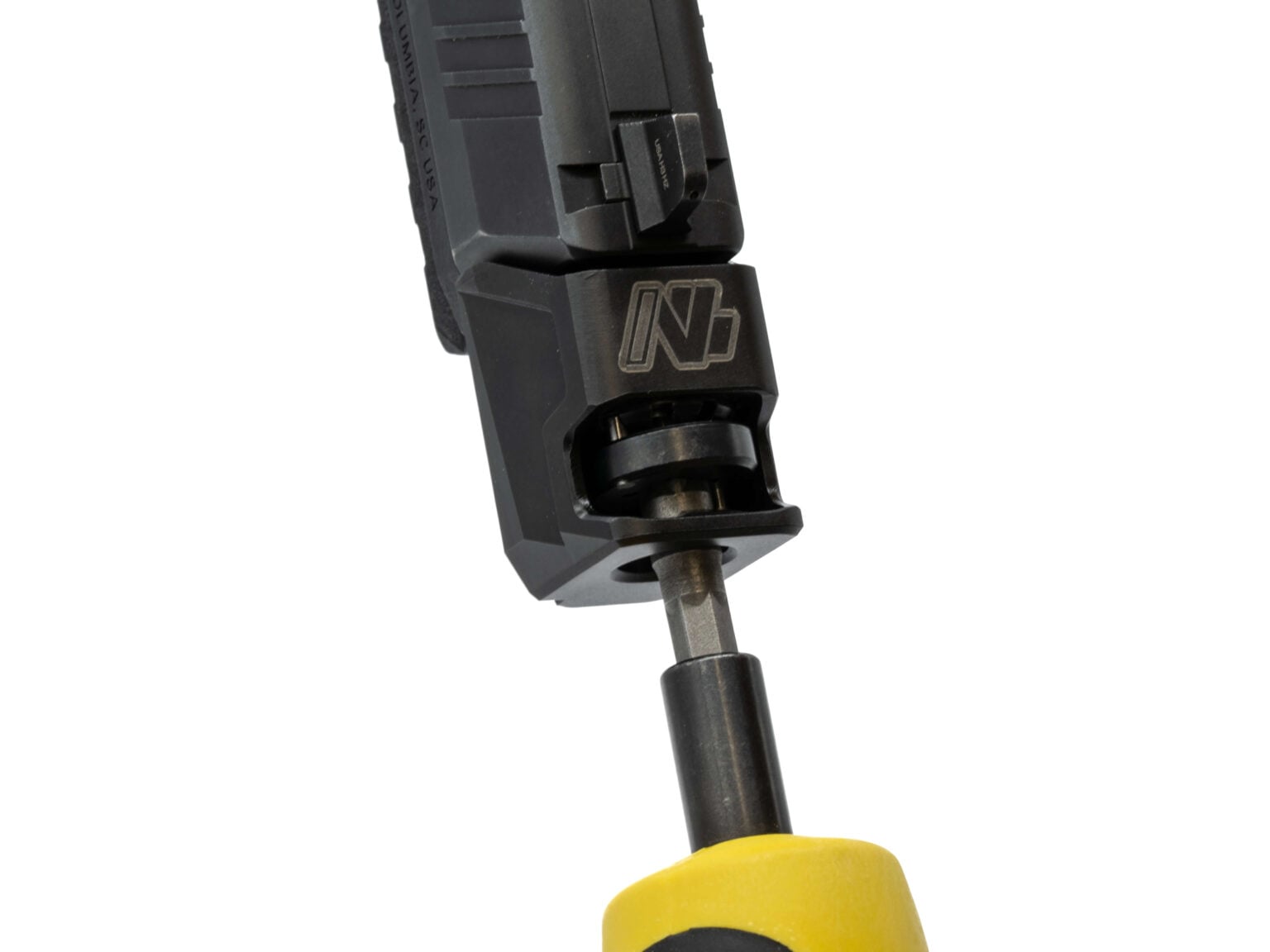

Step 5: Drop the 1/4″ Drive Castle Nut Wrench Head into the port with the pins facing the teeth of the Castle Nut. Insert a 1/4″ torque wrench into the muzzle orifice of the Compensator, and gently press the drive into the box hole on the 1/4″ Drive Castle Nut Wrench Head. Once seated, torque the Castle Nut to 35-40 in-lbs.
Step 6: Verifying that the ANVL SHARUR Compensator is perfectly parallel to the slide, drop 1 dot of Red Vibra-tite or Loctite (NO ROCKSETT) onto the tapered set screw, and begin tightening from the dust cover side of the Compensator using a 3/32 Allen Wrench. This is the alignment screw that keeps the timing of the Compensator, preventing the compensator from backing off. Torque the Alignment Screw to 15 in-lbs.
Step 7: Enjoy!
