Ukon AEMS with AEMS Core Optic


Bundle and save on the Holosun AEMS Optic and Ukon Optic Mount





In stock

Holosun AEMS Core 110101

In stock

Purchase this product now and earn 459 Points!
30-Day Manufacturing Warranty

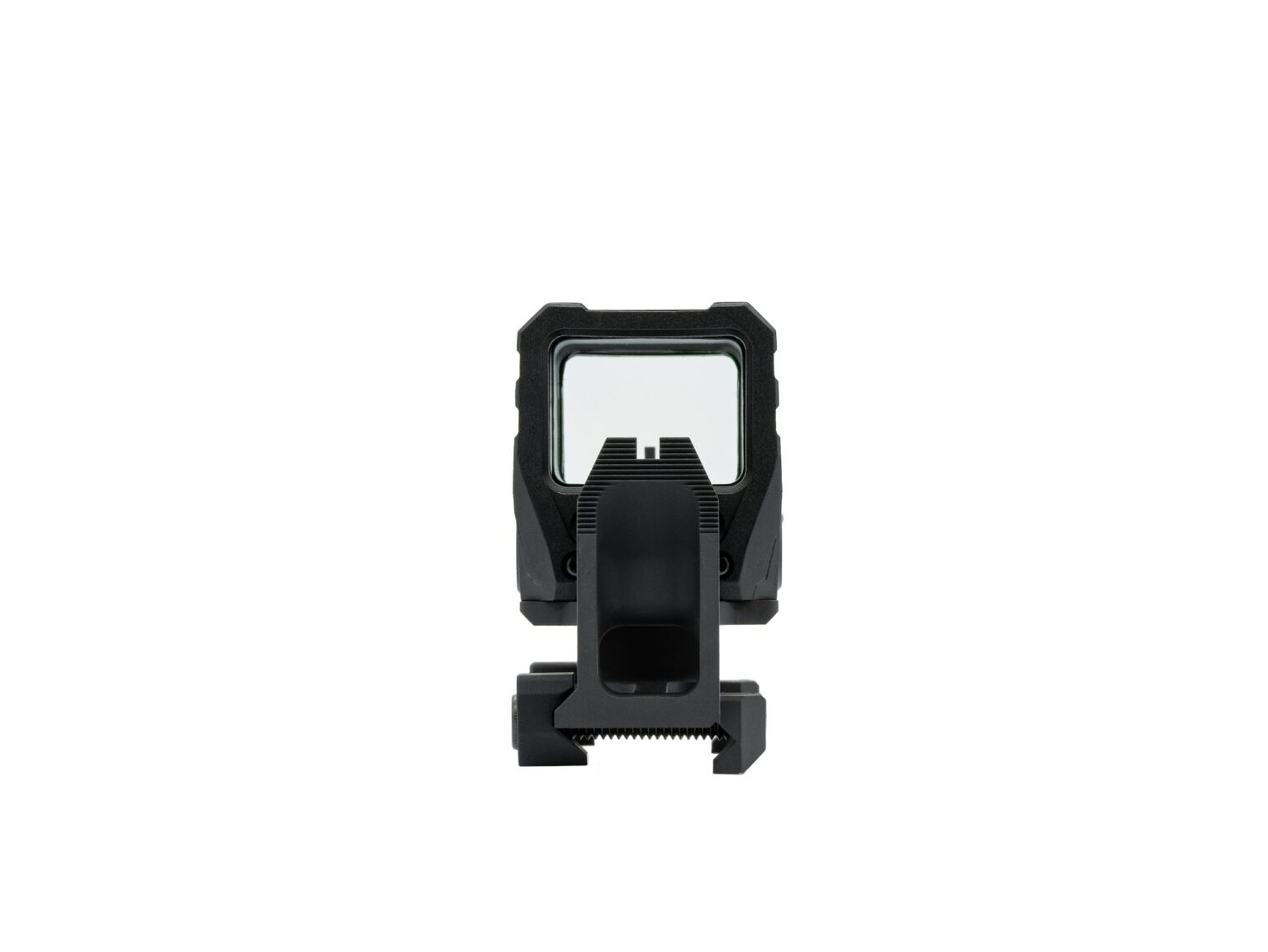

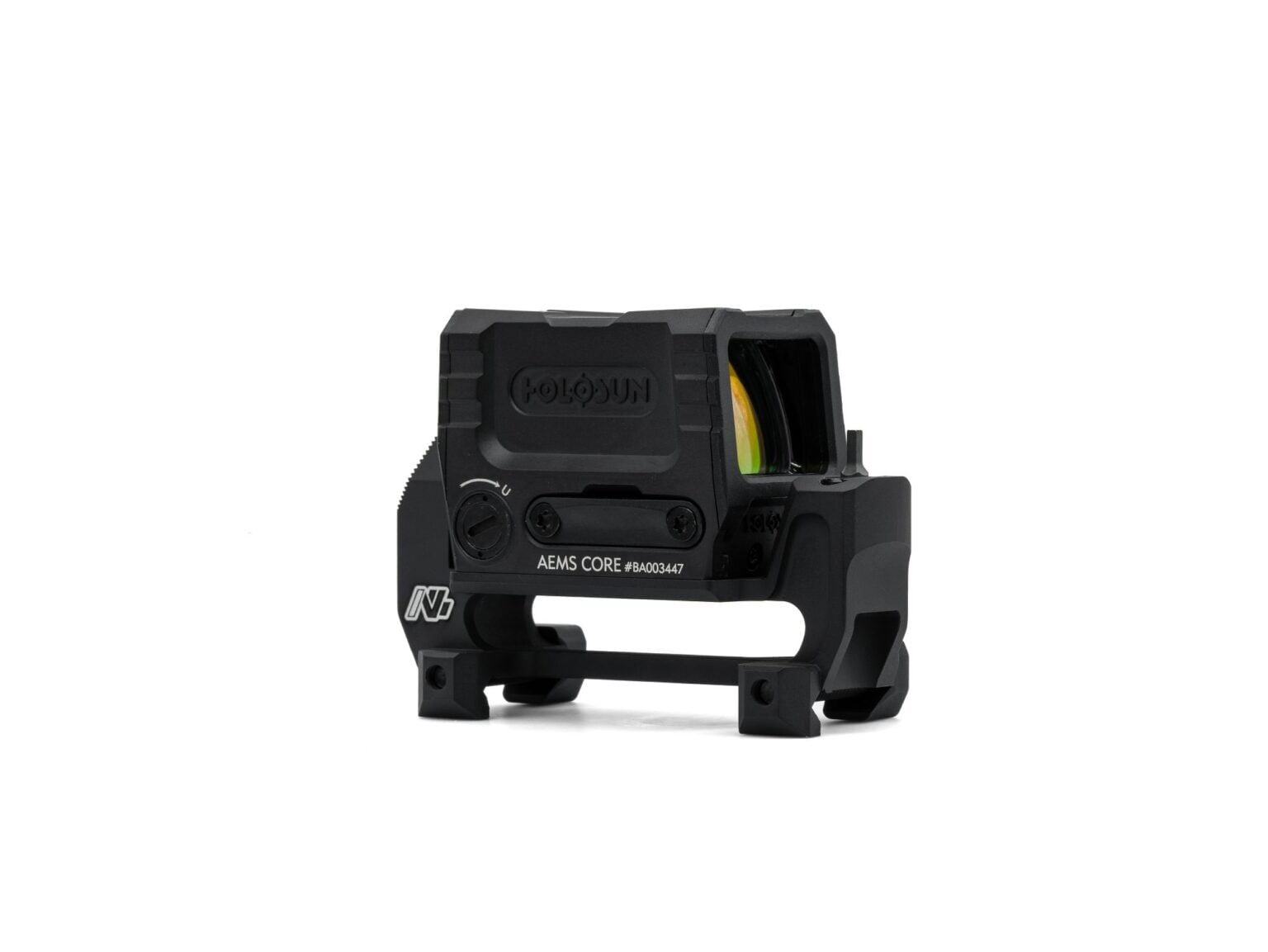

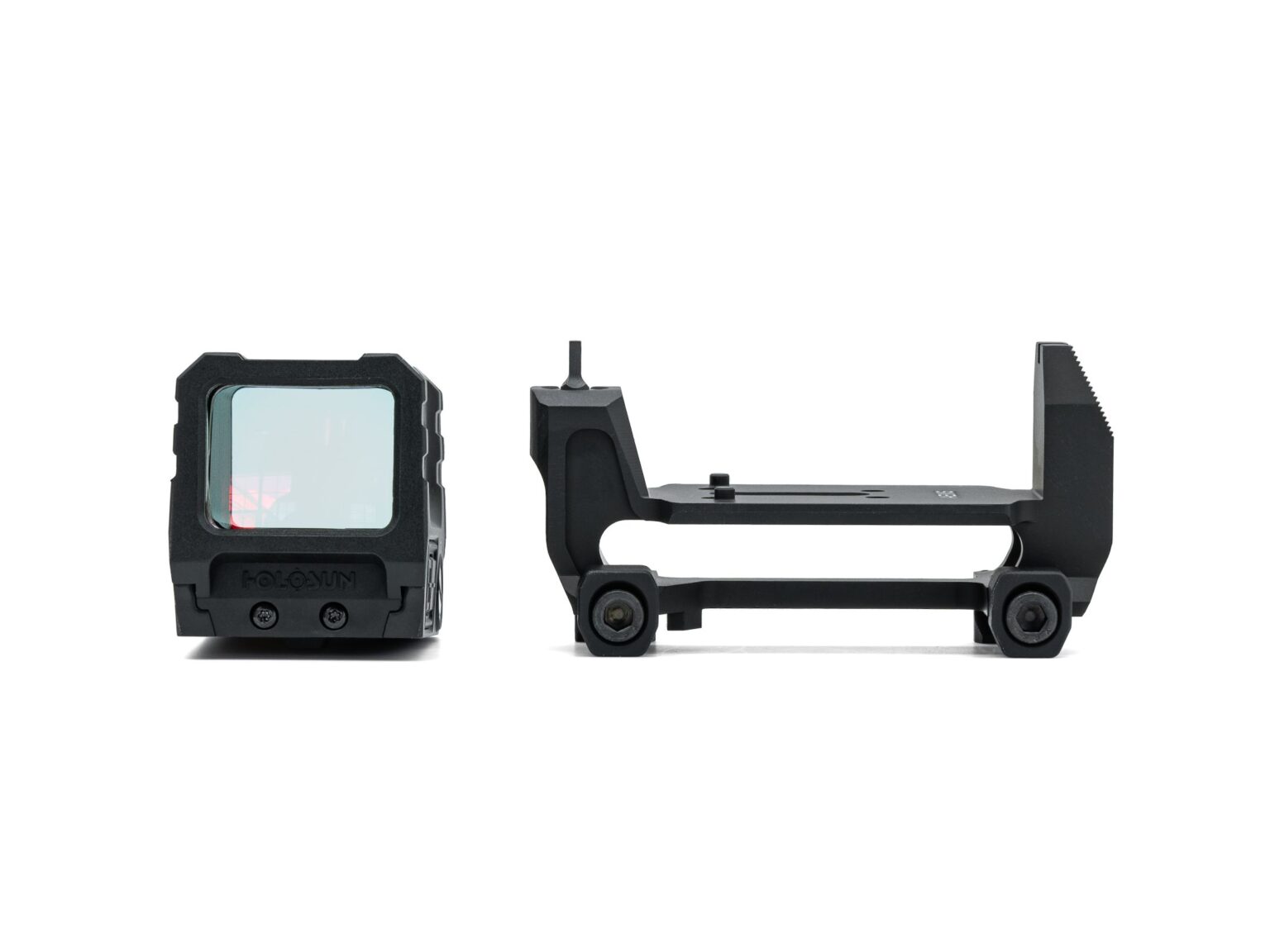

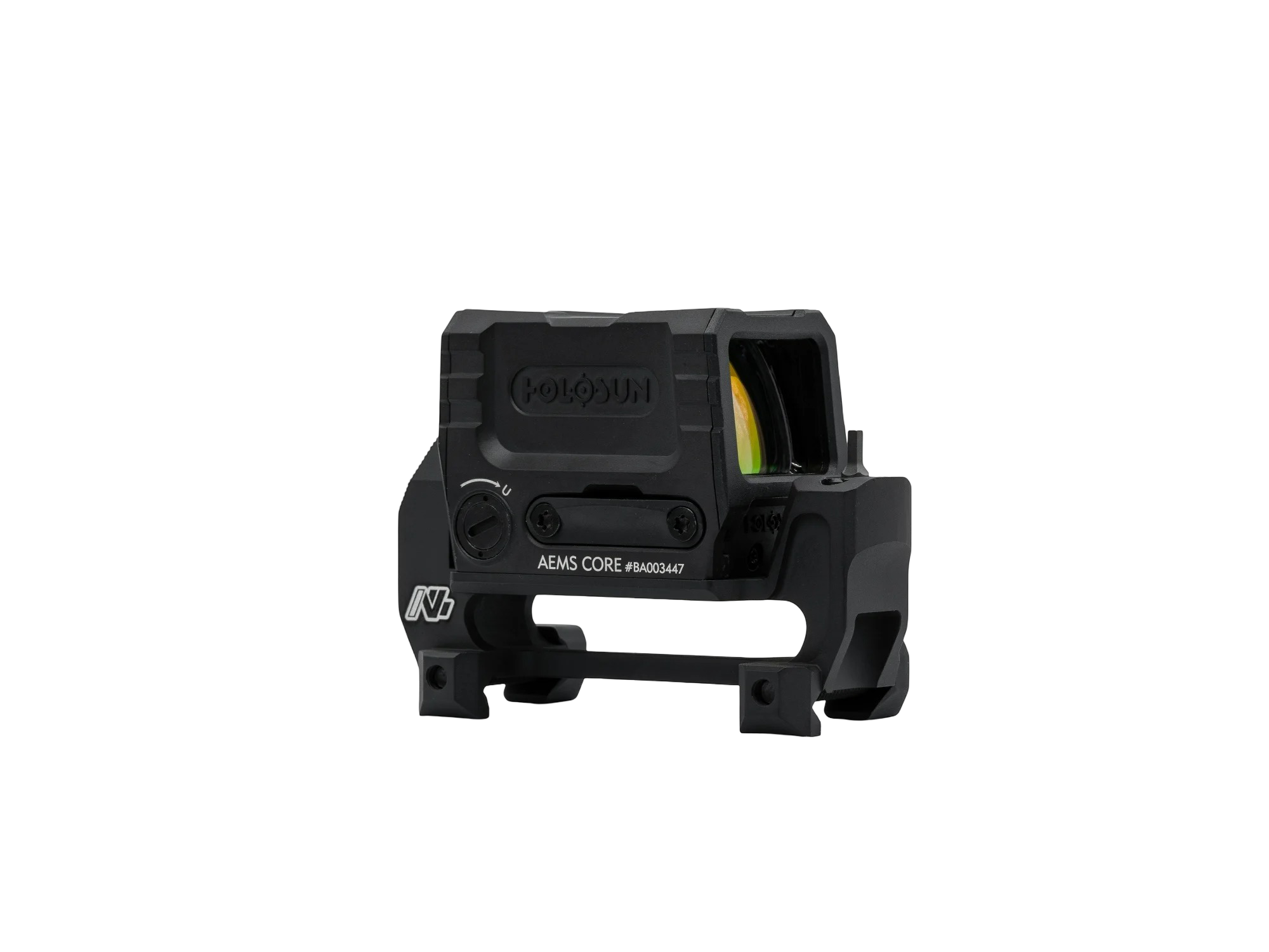

ANVL UKON AEMS is a Holosun AEMS/AEMS CORE type rifle mount that incorporates a single focal plane absolute co-witness backup iron sight package. It utilizes a standard type AR-15 adjustable front sight post. It has the ability to adjust elevation. The user can adjust elevation to be point of aim, point of impact for subsonic rounds while still running the red dot for super sonic and vice versa. It can be used as an absolute co-witness as well for a backup if the red dot fails. Because it is a single focal plane, and it is so close together for a sight picture; the irons actually act like a backup red dot. The mount is constructed from 6061 aluminum with a type 3 hard coat. The window caps on the Holosun AEMS will

need to be removed to fit the optic on the ANVL UKON AEMS. The Optical Center of the optic on the ANVL UKON AEMS is 1.70.

Weight: 2.2oz
Height: 1.80in
Width: 1.41in
Length: 3.34in
DISCLAIMER: ANVL UKON mounts are an emergency backup iron sight system. These were designed as a military requirement to fulfill the backup iron sight requirement while keeping rail space open for the operator. The intended use is within fifty yards or much less, in a CQB capacity; if the end user’s Red Dot sight is damaged, battery has died, or never powered on. This optic Mount system relies on true mechanical zero between the optic Mount, Rail and Barrel to have accurate windage. ANVL UKON mounts are built and constructed to be a perfect mechanical zero from mount to rail. Make sure that your optic is seated correctly, and tighten down on the truest mechanical zero you can get. When mounting the optic Mount, make sure the amount is completely seated and the picatinny rail is tight against the non screw head side of the rail before tightening.

Reasons for windage to be off: Loose tolerances picatinny rail, out of spec tolerances picatinny rail, non-concentric Barrel, mounting the optic mount to a polymer picatinny rail riveted to a sheet metal dust cover, poor tolerancing between barrel and picatinny rail.

DISCLAIMER: Torque Spec is 35-37 in lb for the 10-24 Clamp Screws. Accessories should always be installed by a professional.

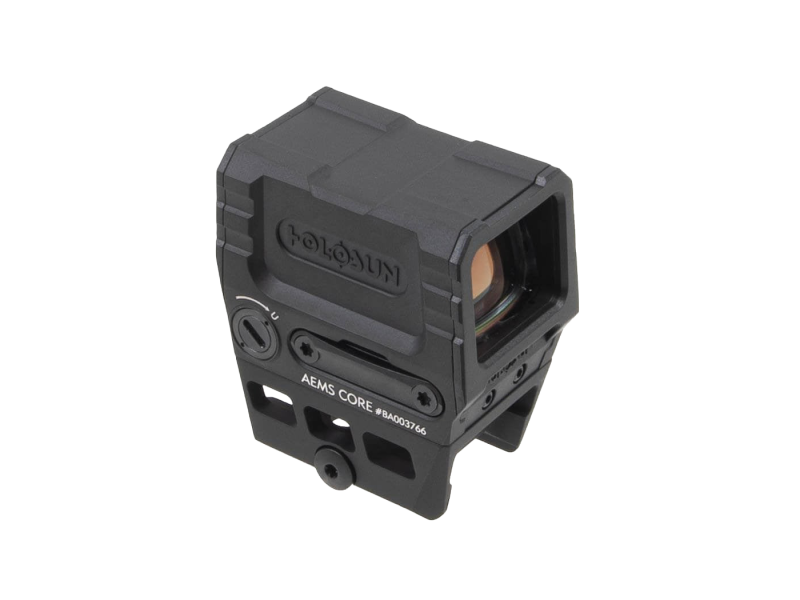

Holosun AEMS 110101 features their 2 MOA Dot reticle and Shake Awake technology. The housing is made of forged pressure forged aluminum and is black anodized for durability.


●  2 MOA Red Dot Reticle

●  Large FOV in a Compact

●  Motion On with Last Setting Recall

●  Up to a 50,000 Hour battery life

●  Shake Awake TechnologyTM

In the Box:

●  Lower 1/3 Co-witness Mount

●  Multi Tool

●  User Manual

●  CR2032 Battery

●  Lens Cloth


Optical Data:

Reticle: 2 MOA Dot

Light Wavelength: 650nm

Reticle Color: Red

Parallax Free: Yes

Unlimited Eye Relief: Yes

Magnification: 1x

Multi-Coatings: Yes

Electronic Data

Power Source: Battery

Battery Type: CR2032

Battery Life (Hours): 50000

Brightness Setting: 10 DL&2 NV

Physical Data

Window Size: 1.1×0.87

Dimension (in): 2.2×1.54×1.7

Weight (oz): 3.9

Mechanical Data

Housing Material: Durable Aluminum

Surface Finish: MAO

Adjustment per Click: 0.5 MOA

W&E Travel Range: ±50 MOA

Environment Data

Storage Temperature: -40°C~70°C

Working Temperature: -30°C~60°C

Submersion: IP67

Vibration: 1000G

In the Box:

●  Lower 1/3 Co-witness Mount

●  Multi Tool

●  User Manual

●  CR2032 Battery

●  Lens Cloth
