The HE509T-RD X2 is an enclosed reflex optical sight designed for pistol applications. Features include a Titanium housing, Holosun’s Super LED with up to 50k hours battery life, Multi-Reticle System, Solar Failsafe, and Shake Awake. The included 509T RMR adapter plate is not compatible with ZEV or Shadow Systems style RMR interfaces.
Color: Black
Finish: Titanium
ANVL UKON 509TX2
Holosun 509T-RD X2
The HE509T-RD X2 is an enclosed reflex optical sight designed for pistol applications. Features include a Titanium housing, Holosun’s Super LED with up to 50k hours battery life, Multi-Reticle System, Solar Failsafe, and Shake Awake. The included 509T RMR adapter plate is not compatible with ZEV or Shadow Systems style RMR interfaces.
Fabric/Material: Titanium
Magnification: 1 x
Reticle: 2 MOA Dot
Illumination Type: LED
Illumination Color: Red
Brightness Settings: 12
Eye Relief: Unlimited
Adjustment Click Value: 1 MOA
Parallax: no parallax adjustment
Optical Coating: Multi-Coated
Battery Type: CR1632
Battery Life: Up to 50 000 Hours Under Normal Use
Operating Temperature: -40 – 70 Celsius
Water Resistance Level: IP67
Length: 1.13 in
Width: 1.6 in
Height: 1.16 in
Weight: 1.72 oz
Magnification Type: Fixed

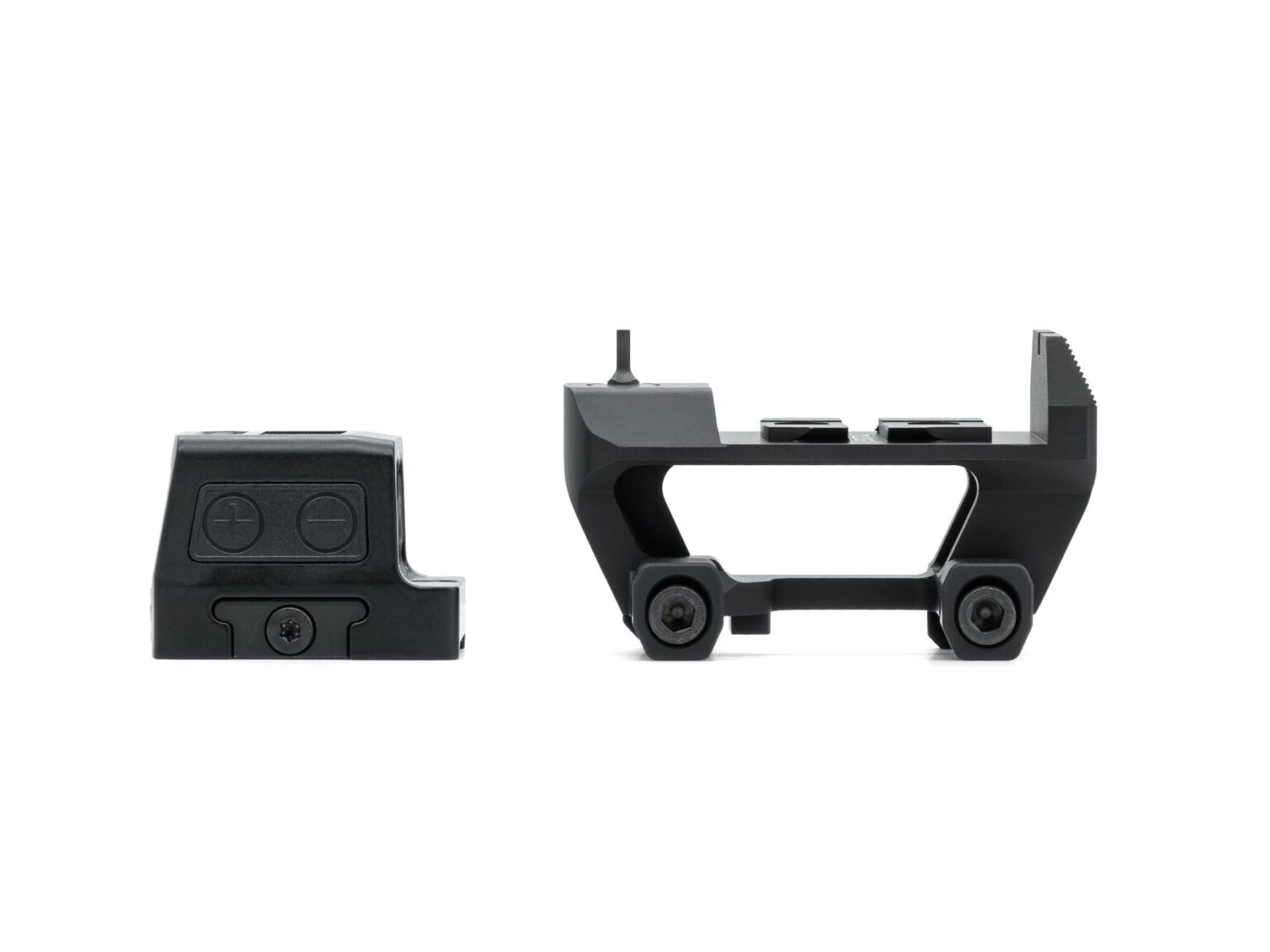

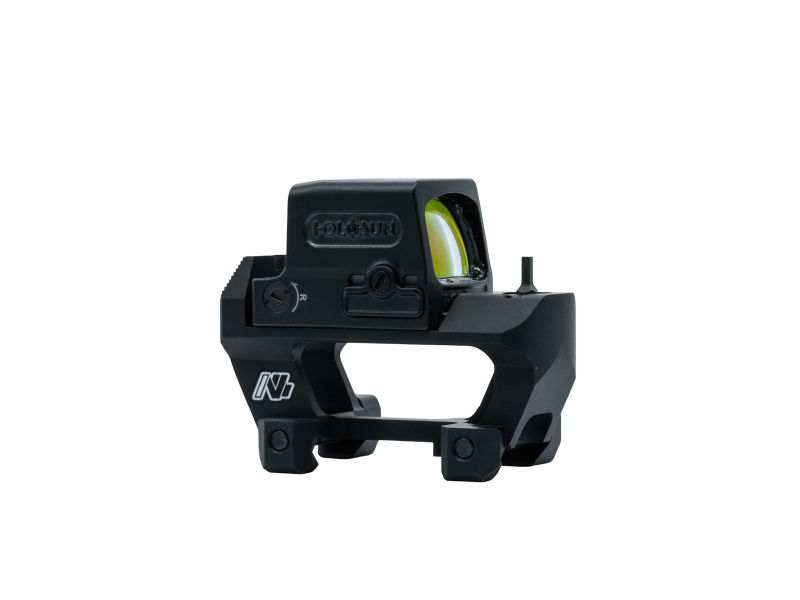

ANVL UKON 509TX2 is a micro Holosun HS509TX2 type rifle mount that incorporates a single focal plane absolute co-witness backup iron sight package. It utilizes a standard type AR-15 adjustable front sight post. It has the ability to adjust elevation. The user can adjust elevation to be point of aim, point of impact for subsonic rounds while still running the red dot for super sonic and vice versa.
Weight: 1.7oz
Height: 1.65in
Width: 1.27in
Length: 2.71in
DISCLAIMER: ANVL UKON mounts are an emergency backup iron sight system. These were designed as a military requirement to fulfill the backup iron sight requirement while keeping rail space open for the operator. The intended use is within fifty yards or much less, in a CQB capacity; if the end user’s Red Dot sight is damaged, battery has died, or never powered on. This optic Mount system relies on true mechanical zero between the optic Mount, Rail and Barrel to have accurate windage. ANVL UKON mounts are built and constructed to be a perfect mechanical zero from mount to rail. Make sure that your optic is seated correctly, and tighten down on the truest mechanical zero you can get. When mounting the optic Mount, make sure the amount is completely seated and the picatinny rail is tight against the non screw head side of the rail before tightening.
Reasons for windage to be off: Loose tolerances picatinny rail, out of spec tolerances picatinny rail, non-concentric Barrel, mounting the optic mount to a polymer picatinny rail riveted to a sheet metal dust cover, poor tolerancing between barrel and picatinny rail.
DISCLAIMER: Torque Spec is 35-37 in lb for the 10-24 Clamp Screws. Accessories should always be installed by a professional.
All ANVL products should be installed by a professional gunsmith. ANR DESIGN IS not responsible for poor Gunsmithing installation techniques
